Nylon Coated Wire
Also known as PET Coated Wire, NC Wire, Book Binding Steel Wire.
We utilize imported PET resin instead of ordinary nylon, coupled with Q195 grade metal wire, to ensure superior tensile strength and appearance.
Furthermore, we have expanded our coating department with 10 additional production lines. This innovation allows us to separate the raw metal wire cleaning and coating processes, significantly enhancing the quality of our book binding wires.
If you need a wire that can withstand high forming speeds and maintain sufficient tensile strength for failure-free operation, our Nylon Coated Wire are the ideal solution!
Details About Nylon Coated Wire
| Wire diameter (mm) | Tensile Strength (N/mm²) | Tensile Strength (N/mm²) | |
|---|---|---|---|
| (-0.01/+0.02 Tolerance) | 5% Tolerance | Indicated Value | Meter Per KGS |
| 0.7 | 625~775 | 725 | 394 |
| 0.75 | 625~775 | 725 | 360 |
| 0.8 | 625~775 | 725 | 294 |
| 0.85 | 625~775 | 725 | 232 |
| 0.9 | 625~775 | 700 | 228 |
| 0.95 | 600~750 | 700 | 195 |
| 1.05 | 600~750 | 700 | 168 |
| 1.15 | 575~725 | 690 | 136 |
| 1.2 | 575~725 | 690 | 124 |
| 1.25 | 550-700 | 660 | 110 |
| 1.3 | 550-700 | 650 | 105 |
| 1.4 | 525-675 | 625 | 86 |
| 1.5 | 525-675 | 600 | 78 |

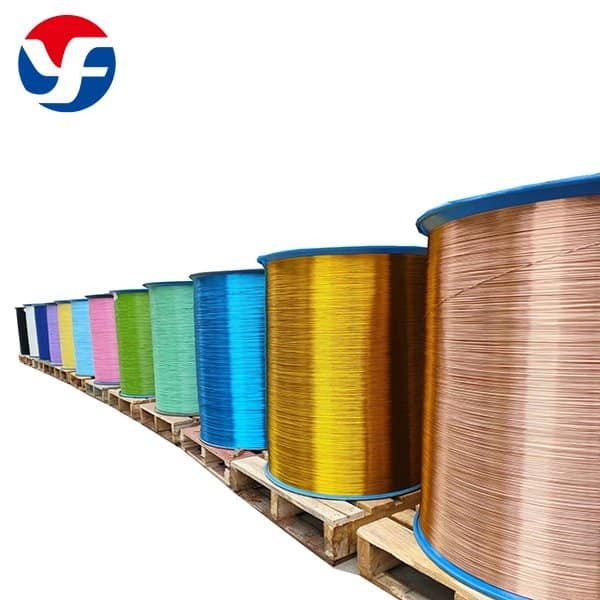

Nylon Coated Wire Packaging and Delivery

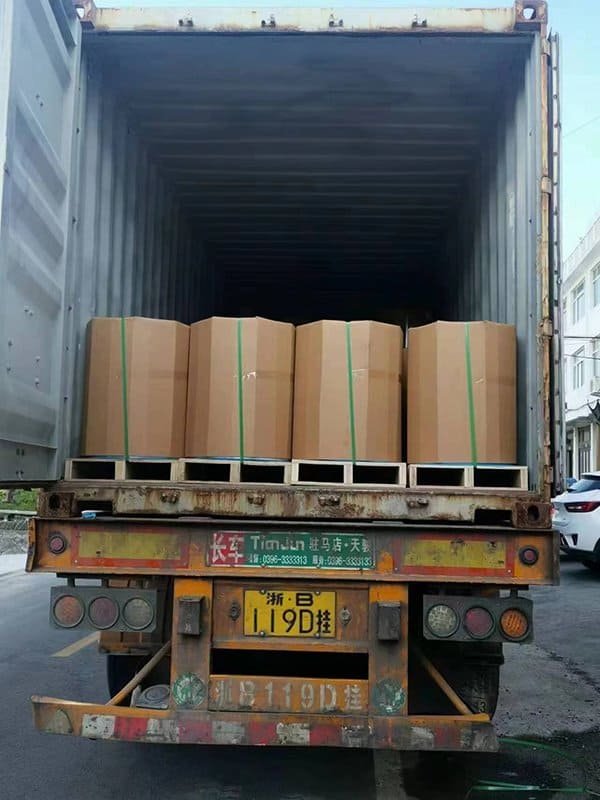

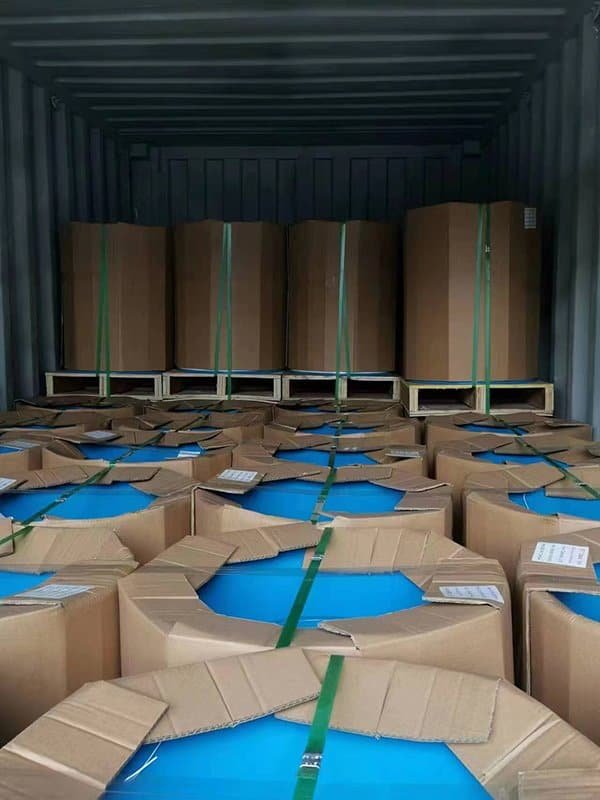

We always choose the most affordable option for our customers, our wire rolls are packaged in 56*72 cm sizes with film and kraft paperboard around the body. Each roll weighs approximately 450 kg, and the palletized roll size is 57.5*57.5*84 cm. A 20’FCL container can accommodate up to 54 rolls of nylon coated wire.
Using the right wire ensures that your double loop wire forms quickly and without errors. Our wire spools feature a conical flange, which reduces the payoff angle, minimizing tension and preventing production issues or unnecessary winding delays
Application

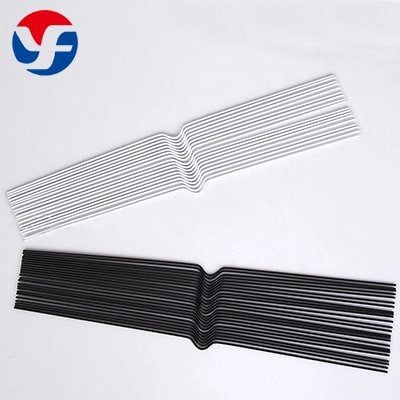

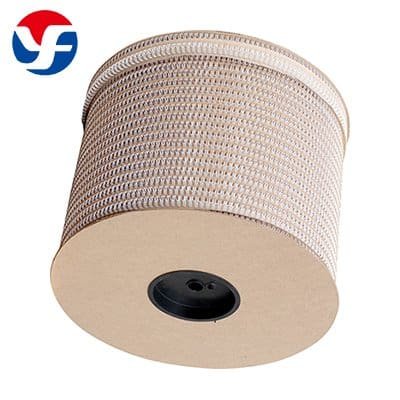

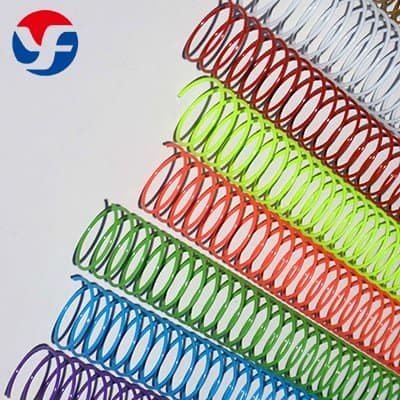

We also use our own Nylon coated wire to produce double loop wire, metal spiral, and calendar hangers.
FAQ
We are pleased to offer free samples along with our color chart for your testing. Our color chart also includes the wire we produce.
Our Nylon Coated Wire had been exported to Bangladesh, India, Malaysia, Poland, Czech, Egypt, Spain, etc. And suitable for their High Speed forming machine.
Our lead time is 20 days for one container 26 tons. For small orders of common colors, we have the inventory.
Our Nylon Coated Wire MOQ is 1 roll whihc around 450 kgs Net Weight.
We need 30% down payment to start the production. We support T/T and LC.
Sure, we can provide the forming and paper cutting machines.
